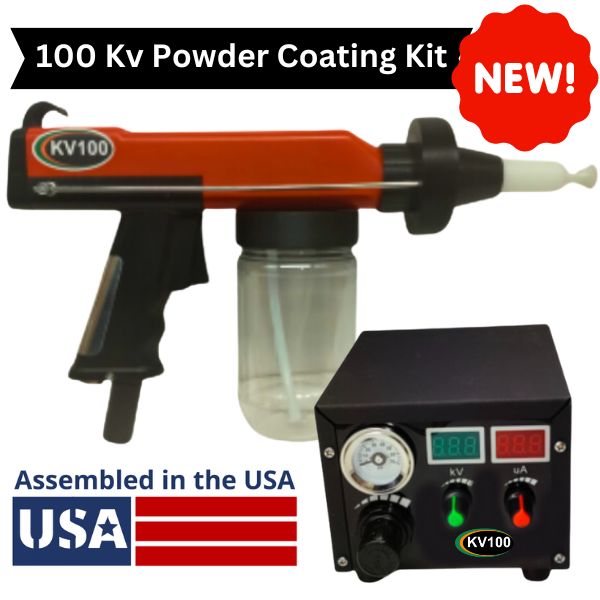

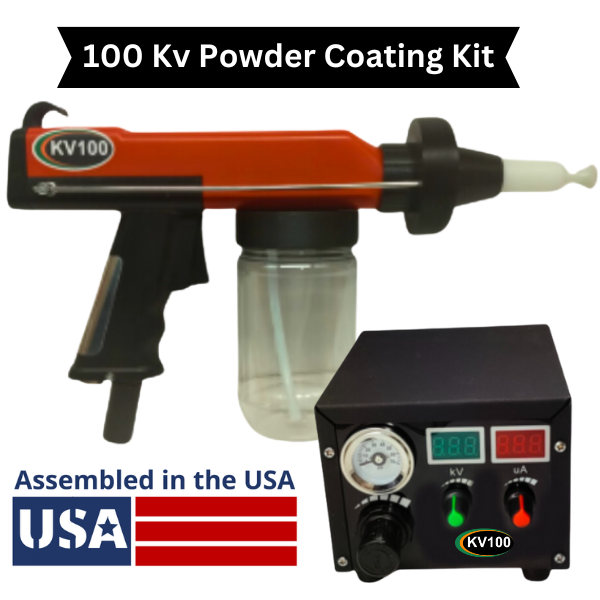

100Kv Powder Coating Gun Kit with Corona Ring

$595.00

5 in stock

Description

100Kv Powder Coating Gun for Home and Small Business

Introducing the budget friendly KV100 from PowderCoatPro. The most powerful and versatile powder coating kit you’ll find anywhere under $600.

Get professional results every time with its full 100 KV of power and adjustable Micro amps (the key to pro level finishes and hassle free powder coating.)

The KV100 has features normally found only in high end commercial guns from the big gun makers that cost thousands more.

Features like fully independent Kv and Micro amp settings for max control over any part profile, a full range powder flow options adjustable from 0 to 70 PSI, and available Hopper and Corona Ring attachments to get the job done right.

With the KV100 multiple coats are no problem. Faraday cages melt away with a wide range of micro amp adjustability and the Corona Ring attachment.

Color changes can be as fast as one (1) minute in either cup or hopper mode and spraying metallics and textures is never a problem.

And unlike some other guns, the KV100 is fully repairable, has a full 1 year warranty and is fully backed with U.S. based parts and service.

Twin Grounding Systems (Pro Gun Feature)

One thing you absolutely “must have” in powder coating is a good ground system. Without it, powder won’t stick, and your personal safety is at risk.  To powder coat properly, you should have two grounding points, one for the part and a second for the system and your personal safety. This is a mandatory feature on all pro-level guns.

Lesser quality systems use the ground of your electrical outlet for both of these. This says them money, but robs you of valuable coating performance. Our machine is the only one in its price range that comes standard with twin professional level grounding systems for peak performance and operator safety.



Super-Fast Color Changes & Powder Reloads

Thanks to its front mounted cup design, this gun is extremely fast to clean out and change colors (under 1 minute.) With a few extra powder cups on hand, powder reloads are even faster (5 to 10 Seconds.)



Sprays all Types of Powders

This gun does a great job with Metallic’s, texture, veins, wrinkles and chromes. With its cup-style hopper for even mixing, it has one of the shortest powder paths to the part which helps keep heavier powder particles from settling for a more even finish.



Help with Faraday Cages

Faraday Cages are a fact of life with powder coating so it’s never a case of if you’ll encounter one but when. With this machine, you can turn the charging power all the way down or off to minimize and often eliminate the Faraday Cage and still get the powder where you want it.

Corona Ring Attachment

A “Corona Ring” works by removing free ions (surplus powder charging energy) from the charge cloud between the tip of the gun and the part being coated.
They are extremely useful because roughly speaking, only 1% of the charge coming out of the gun tip ever actually gets used to charge the powder leaving a lot of unneeded charge particles in the charge cloud which can interfere with recoats, Faraday Cages and finish quality.

When you use a Corona Ring it acts like a magnet, drawing the majority of those excess free ions away from the charge cloud and giving them an easy path to follow to ground leaving just right amount of powder charge leftover to get the job done.

Corona rings are particularly useful when spraying metallic and textured powders as they provide a higher quality finish and they can make recoats dramatically easier to apply.

Expandable System

Our KV100 system is expandable and can grow with you business. We have a factory matched add on hopper that holds over a 1LB. of powder that attaches in seconds for those larger jobs. see it here.











Not a “Throwaway” Gun

It is also the only powder coating system in its price range that is fully repairable. Other guns are either “throwaway guns” with no serviceable parts or guns where the manufacturer “holds you hostage” by refusing to make some repair parts available in hopes that you’ll just buy another gun.



Technical Specifications

Power Supply Source Voltage: 110V AC 60Hz with U.S. Plug
Output voltage: 0—100KV (Adjustable)
Output Amperage 16 to 100 80 Micro Amps (Adjustable)
Polarity: Negative
Max Input Air Pressure: 70PSI
Air Consumption: 0 to 5 m³/h (2.9CFM)
Weight of spray gun: 600 g (1Lb. 5oz)
Max. Possible Powder yield: 550g/min (19.4 OZ/min)
Volume of Powder Cup : 502.75 ML (17oz)
Work temperature range:-10℃—45℃ (50°F to 113°F)



What’s Included in Your Kit

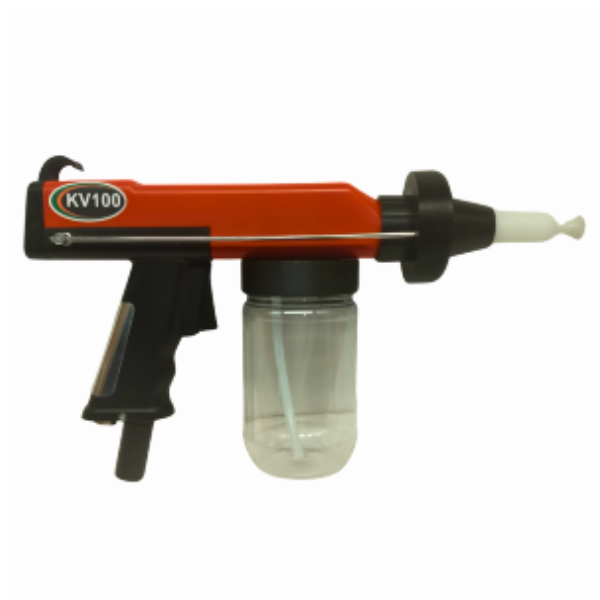

1- 100Kv Powder Coating Cup Gun with Powder Flow Control Valve.

1- Corona Ring Attachment

1- Powder Coating Cup & Lid

1- Round powder coating nozzle/electrode set with 21mm round diffuser tip.

1- 2 Spare round diffuser tips.

1- Flat nozzle/electrode set.

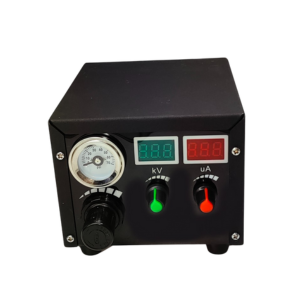

1- Powder Coating Gun Controller with 0kv- to 1000Kv and 16 to 100 Microamp adjustment.

1- Power cord for controller.

1- Gun cable- (gun to controller.)

1- Air hose- (gun to controller.)

1- ¼” NPT Female to 6mm Tube Connector with 6” Tubing Whip (Air nipple not included)

1- Ground wire with Squeeze Clip (for controller to part.)

1- Ground wire with Squeeze Clip (for controller to Earth Ground.)

1- Quick Connection Chart- Gun Settings Chart

1- Instruction Manual (English.)

1- One (1) Year Full Repair/Replacement Warranty.


Warranty

This system is fully backed by our exclusive One (1) year repair or replacement warranty. That’s double the warranty of most other guns in its class.

If for any reason your system should fail to work simply contact us and we’ll arrange to have you send it back to our aftercare service center for free repair or replacement.

Shipping

We ship by USPS Mail. Most days orders placed before 12:00 Noon Eastern Time will typically be shipped the same day. Tracking is automatically provided by both PowderCoatPro.com and USPS.



Additional information

Dimensions 15 × 10 × 8 in
