Description

Powder Coating Gun Kit with Cyclonic Hopper
Patent Pending Cyclonic Technology Eliminates Common Hopper Problems



The Next Evolution in Powder Coating Technology

Building on the proven performance of our best-selling KV80 powder coating gun, the KV80H takes powder coating to the next level with the addition of our patent pending cyclonic hopper system. This isn’t just another hopper gun – it’s a complete game-changer for anyone serious about achieving consistent, professional results; especially with metallics, textures, and specialty powders.



No More Hopper Frustrations

• Won’t run dry: Eliminates the need to stop and shake the hopper to re-establish powder flow.
• No air pressure adjustments: Squeeze the trigger and spray powder evenly and continuously without constant tweaking and adjustments.
• Smooth, consistent powder flow: No powder blobs or inconsistent spray patterns.

Tornado-Vortex Action Technology

Our innovative cone-shaped bottom design with top-fed air injection creates a powerful cyclonic action that forces air down to the cone mounted in the hopper bottom to create a  tornado-like vortex pattern. This revolutionary design:

• Completely mixes powder – Prevents particle separation that plagues traditional hoppers.
• Perfect for metallics and textured powders – Keeps heavy metallic particles evenly distributed.
• Holds approximately 1lb. of powder – Less downtime, more productivity.
• 360-degree consistent airstream – Uniform powder flow from start to finish.



Professional-Grade KV80 Gun Performance

30-80% More Power Than Competitors

Most guns in this price range are underpowered, leaving you struggling with multiple coats and metallic applications. With a 0-80KV adjustable range, the KV80H handles any challenge.

Twin Professional Grounding Systems

Unlike cheaper systems that cut corners on safety and performance, the KV80H includes dual grounding points—one for the part and one for system safety. This professional-level feature is mandatory on all pro-grade guns.

Conquer Faraday Cages

Turn the charging power down or completely off to minimize Faraday cage effects while still achieving excellent powder transfer.

Built for Real-World Production

Superior for Metallics & Textured Powders

• Cyclonic mixing action prevents particle separation common in metallics.
• Even distribution of heavy metallic flakes throughout the spray process.
• Consistent finish quality from first spray to last.

Hopper-Fed Advantages

• Perfect for larger jobs – No constant cup refilling.

• Less powder contamination – Sealed system protects powder quality.



Technical Specifications

• Power Supply: 110V AC 60Hz with U.S. Plug
• Output Voltage: 0-80KV (Adjustable)
• Polarity: Negative
• Maximum Output Current: 80 Micro Amps
• Max Input Air Pressure: 87 PSI
• Air Consumption: 0 to 5 m³/h (2.9 CFM)
• Work Temperature Range: -10℃ to 45℃ (50°F to 113°F)
• Hopper Capacity: Approximately 1lb. of powder
• Weight of Spray Gun: 600g (1 lb. 5 oz.) (Note: Final weight may vary with hopper configuration)

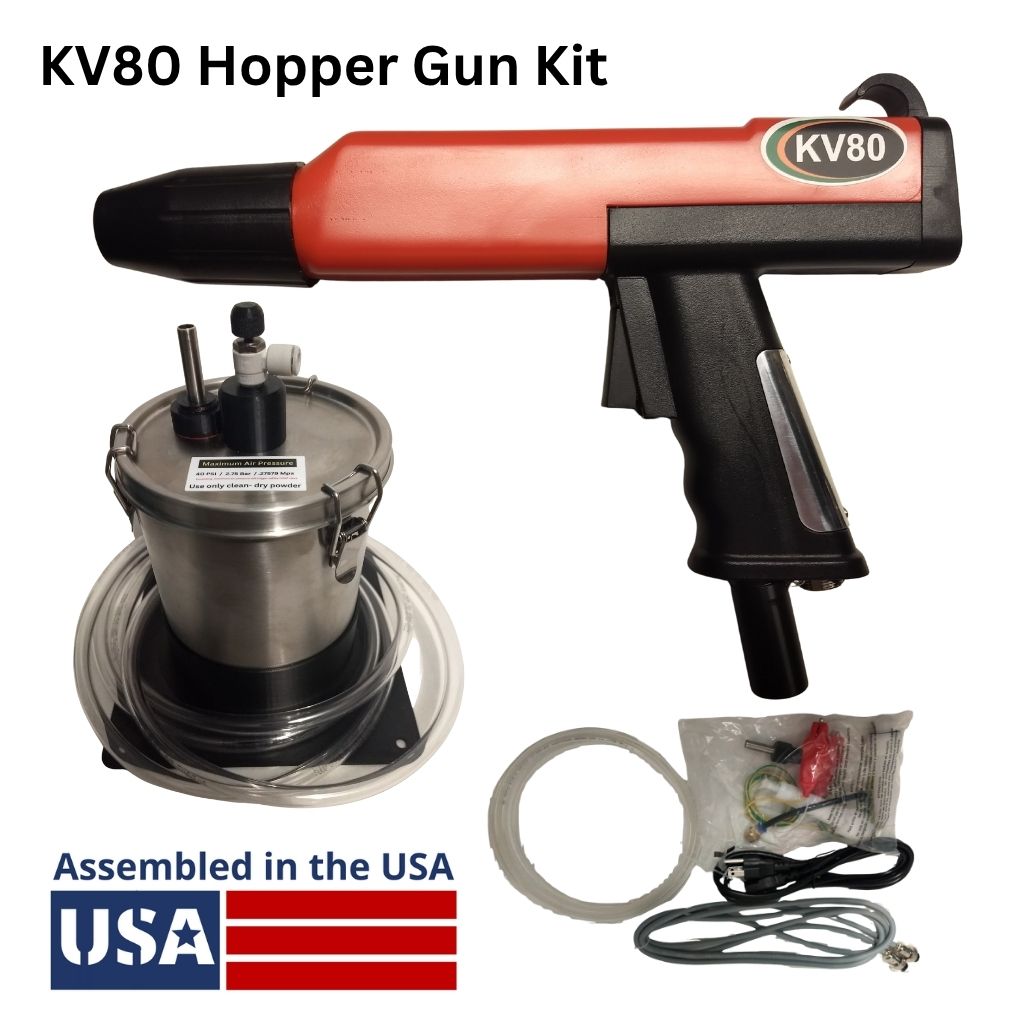

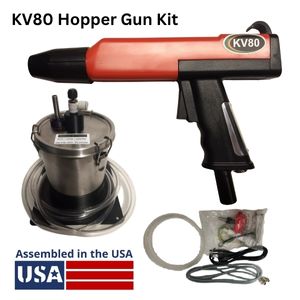

What’s Included in Your KV80H Kit

• 80Kv Hopper-Fed Powder Coating Gun with Powder Flow Control Valve
• Patent Pending Stainless-Steel Cyclonic Hopper with Carbon Fiber Reinforcement
• Hopper Base Stand
• Round powder coating nozzle/electrode set with 21mm round diffuser tip
• Spare round 21mm diffuser tip
• Flat nozzle/electrode set
• Powder Coating Gun Controller with 0kv to 80Kv adjustment
• Power cord for controller
• Gun cable (gun to controller)
• Air hose (gun to controller)
• 8 feet of powder hose for hopper connection
• ¼” NPT Female to 6mm Tube Connector with 6″ Tubing Whip
• Ground wire with Squeeze Clip (for controller to part)
• Instruction Manual (English)



Professional Results, Every Time

Fully Repairable – Not a “Throwaway” Gun

Unlike competitors who force you to buy new equipment when something breaks, the KV80H is completely serviceable with available repair parts. This professional approach protects your investment.

Designed, Re-Engineered & Assembled in the USA

Using globally sourced, top-quality components, every KV80H system is assembled here in the U.S.A>

Perfect Applications

• Metallic powders – Metalflake, Chrome, aluminum, bronze effects
• Textured powders – Hammertones, wrinkles
• Production runs – Consistent color application job after job
• Specialty finishes – Veins and multi-color effects
• Large components – Wheels, frames, furniture, equipment



Warranty & Support

Full One-Year Repair/Replacement Warranty – Double the warranty of most competitors in this class. If your system fails, simply contact us and we’ll arrange free repair or replacement at our service center.

Upgrade Your Coating Game Today

Stop fighting with inconsistent powder flow, constant hopper shaking, and segregated metallics. The KV80H with Patent Pending Cyclonic Hopper Technology delivers the professional results you demand with the reliability you need.
